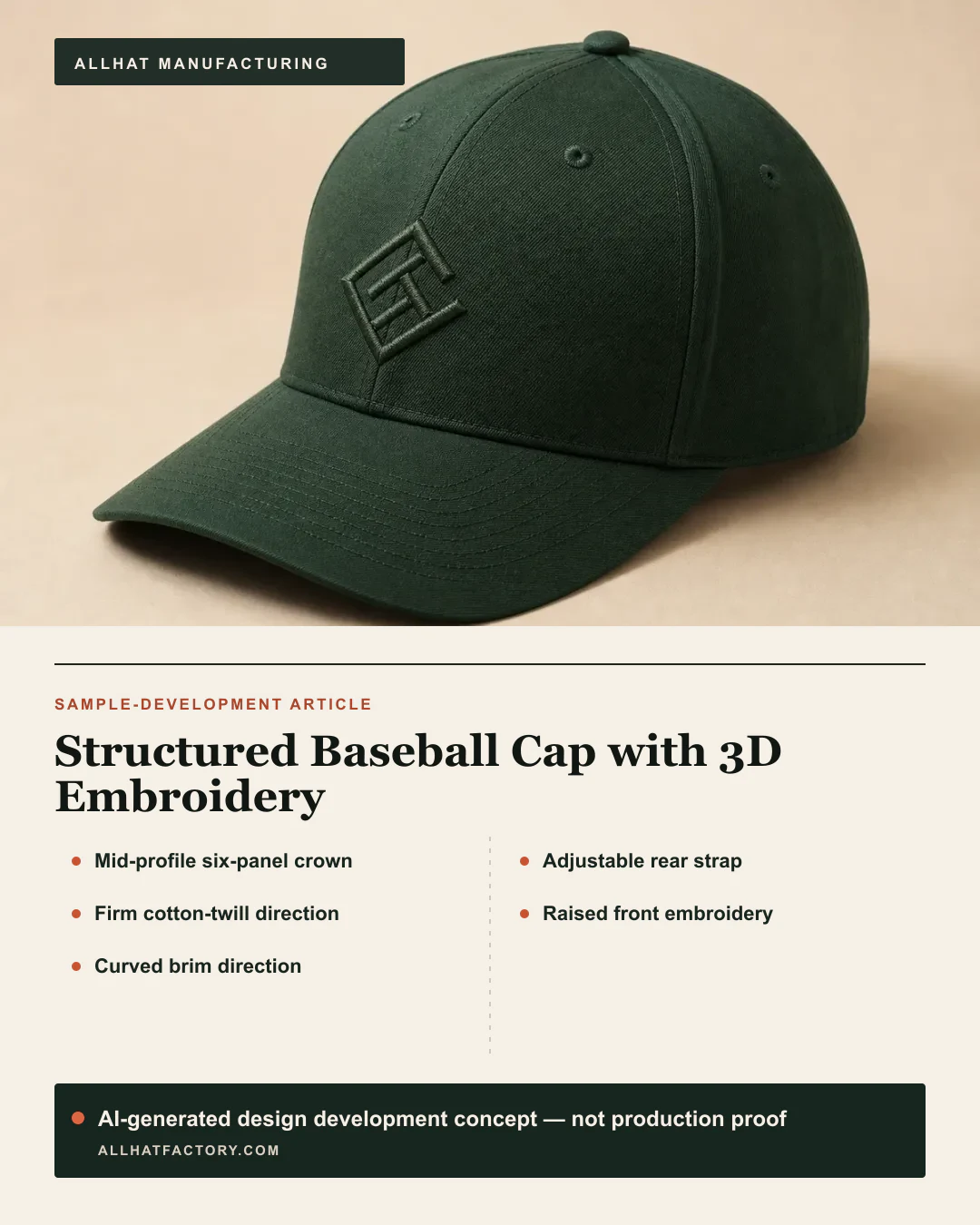

Structured Baseball Cap with 3D Embroidery

The concept begins with a clean branded cap for everyday retail use, not a replica of an existing branded style. The buyer needs a stable front area for a bold original symbol, a familiar curved-brim silhouette and an adjustable rear finish. The brief should state the intended crown height and wearer range instead of relying on the word structured.

Baseball-cap inquiries become comparable when the tech pack records six finished views, crown depth at the center front, visor length along its center line, preferred curve and the usable strap range. Mark the original emblem as mandatory, then label button color, eyelet treatment and underside color as selectable details so a supplier can flag their consequences without rewriting the concept.

A six-panel crown with front support is the selected direction. The seam map, front-panel shape, button, eyelets, sweatband and brim insert should be listed separately, because each affects the front profile and the way raised embroidery sits. Curvature should be defined at the approval sample rather than inferred from a generic cap reference.

Front-panel buckram deserves its own sample note because stiffness, height and lamination can reshape the cap even when the shell pattern stays unchanged. Ask for the seam tape, visor-board route and sweatband build to be named, then photograph the cap on the agreed form from eye level; a tabletop image alone can disguise a leaning or overfilled crown.

Firm cotton twill gives the first sample a controlled face for embroidery, while a lighter recycled-polyester twill offers a comparison in hand, sheen and recovery. The buyer should review both on the same crown pattern and color standard. Front support, sweatband and brim insert need their own material descriptions because the shell name does not define them.

Cotton-twill approval should include a physical swatch, fabric weight or supplier article, finish, shrinkage discussion and the exact shade reference under consideration. Test the alternate polyester direction as a separate proposal rather than calling it equivalent: its sheen, recovery and needle response may alter both the retail hand and the edges of the raised emblem.

The original geometric mark uses raised embroidery only on strokes wide enough to close cleanly over the foam. Smaller internal details can stay flat or be removed through an approved artwork revision. The digitized interpretation should record finished width, thread colors, stitch direction, underlay and foam coverage, then be checked after the crown is assembled.

Raised embroidery needs two artwork zones: foam-supported strokes and conventional flat stitches. Request a sew-out that labels foam thickness, thread map and digitizing revision, then inspect the center-seam crossover, exposed foam, small counters and puckering. If any line is widened or removed, place that change on an annotated proof before authorizing a cap sample.

More front support can hold a crisp retail profile but makes the crown feel firmer; lighter support changes the silhouette and the embroidery foundation. Increasing 3D height adds visual depth while demanding broader strokes and cleaner edge closure. Moving the mark away from the center seam can improve stitch consistency, but it changes the intended symmetrical composition.

Choosing a deeper crown creates more space above the visor but may move the emblem away from a familiar sport proportion. Likewise, a metal buckle feels different from a hook-and-loop or plastic closure and changes rear branding space. Keep those alternatives in separate rows with their affected measurements, components and artwork, rather than combining several changes in one unlabeled sample.

Approve the front and side profiles, crown height, brim curve, closure range, sweatband finish and the formed embroidery together. Measure logo width, height and position from named seams. A second review should confirm the inside backing and any approved simplification of the original mark before the specification is treated as ready for quotation.

The baseball-cap RFQ should attach editable logo art, a dimensioned front placement, color breakdown, size or adjustment expectation, quantities by color, destination and packing preference. Ask the supplier to identify proposed materials, sampling checkpoints and unanswered construction points. A signed sample-development version can then anchor the quotation conversation without implying that an order has already been produced or its performance guaranteed.
